power cable stripping tools

Unit Price: USD 450.0000 / Piece/Pieces
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 10 Days

Basic Info


Model No.: M-2

Type: Wire Strippers

Certification: CE, CCC, ISO

Customized: Customized

Condition: New

Feature: Insulation

1MM-45MM: 1MM-45MM


Additional Info


Packaging: plywood case

Productivity: 1000

Brand: MRECYCLING

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 1000PCS/MONTH

Certificate: TUV CE


Product Description

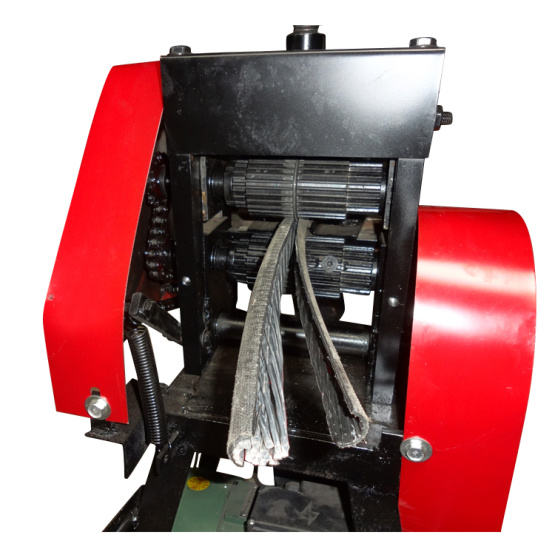

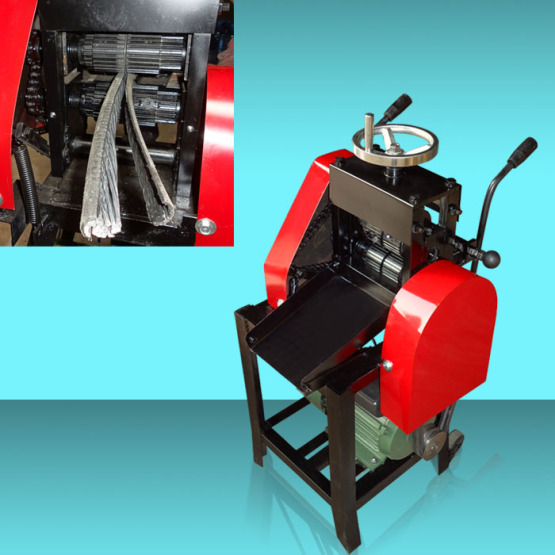

Insulated  Electrical Copper Cable Wire  Skinning  Machine
 M-2   Double Blades  Type  CE  Approved

 Simply raise or lower top blade with the handwheel for different insulation thicknesses.
Self Feeding, just insert wire and it comes out the other side.
Ideal for Scrap Processing Yards, Demolition Companies, and Wire Manufacturing Plants.

cable stripping tool

Power supply 1.5KW,230V-50HZ.
Processing diameter at 10mm-65mm cable wire.
Wire stripping capacity 35 meter/minute
Output 50kgs/hour,depends on wire diameter.
Measurement 480*480*98mm
Weight 60kgs
Steel rolls 2sets.
Blades 2 pieces
Slots 1 piece

*Once the machine is set for one size of wire,you can strip that size continuously,without adjusting your machine.

*Hardened Steel Slitter Blades.

*Heavy Duty Gearbox Drive.

*Industrial on-off switch with separate  Emergency Stop Button.

coax cable stripping tool

Instruction:

Use the adjusting handle to adjust the distance between the line conductor and the cutter axis,to make sure the wire can pass through  the machine,so to slice the scurfskin of the wire from the inside metal.

Continue  above working,keep proper distance from Your handles to the machine.Any emergancy or deviance,please press emergancy stop Switch  immediately,then inspect the machine status.
Safety warning: Never put your hands or head into the machine when it is working!  Keep children away!

coaxial cable stripper

copper wire stripping tool

copper and insulation separator

easiest way to remove insulation from copper wire
