cable insulation stripping tools
M-1 Advanced half safety Type
Power supply 230V-50HZ,2.2KW
Daily Output 400-1000KG
Processing diameter at 1-45mm cable wire
Wire stripping capacity 35 meter/minute
Steel rolls 4sets.
Blades:17 pieces+5 pieces high speed steel
Slots 21 pieces
copper cables,AL wires,
double PVC-covered copper wire,
twin Socket line,
dual core flat line,
Single core wire,
XL jacketed wire,etc.

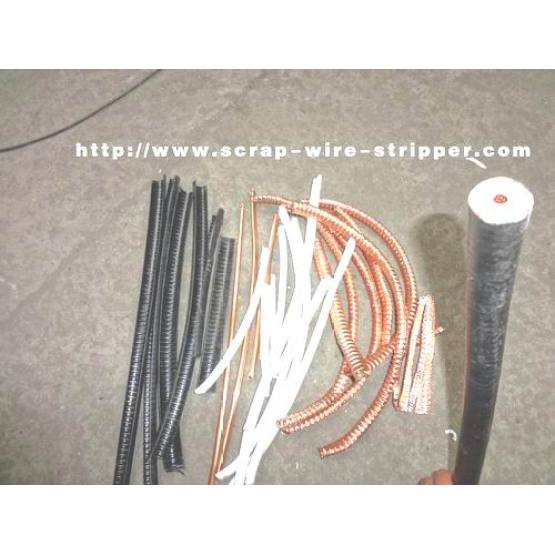

Wire comes out the back of the machine with a cut down the center of the wire or cable,peel or strip the insulation off,so separate copper or aluminium parts from electric cables' sheath.Recovers the Conductor Material from Cable and Wire.
*This machine added with five more pieces high speed steel,stripping double insulation in one process time.
1.Start up the machine,make sure the machine well running,and there is no people in the machine`s output side.
2.Please infeed wire/cable according to the inlets`diameter,infeed wire/cable on by one.
To avoid damaging blades,please cut down terminal of the wire/cable before feeding.
3. If the wire is not cut after stripping, you need to tighten the handles to lower the blade.
4. If the copper inside is cut after stripping, you need to release the handles to raise the blade.
