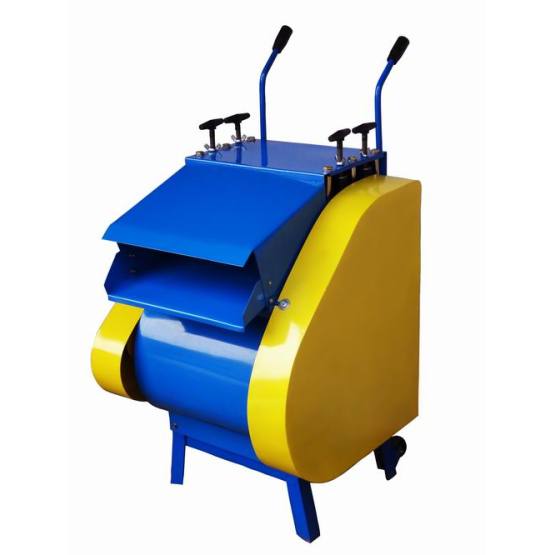

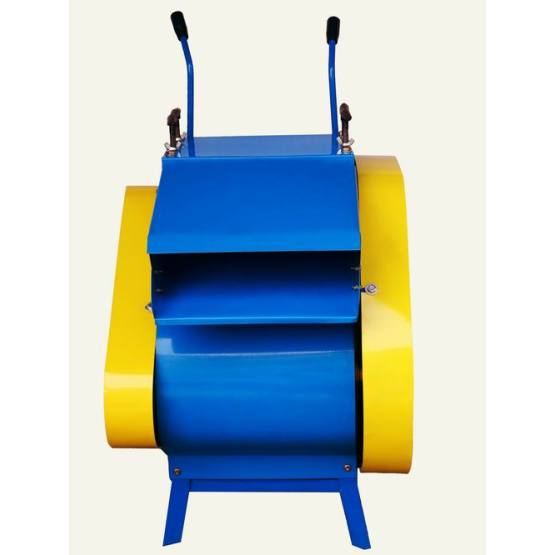

cyclops cable stripping tool
M-1 Double safety guard Type
CE TUV Approved
Power supply 230V-50HZ,2.2KW
Daily Output 400-1000KG
Processing diameter at 1-45mm cable wire
Wire stripping capacity 35 meter/minute
Steel rolls 4sets.
Blades 15 pieces
Slots 11 pieces
This machine have complete wheel guards,wire output guards.
Wire comes out the back of the machine with a cut down the center of the wire or cable,
peel or strip the insulation off,so separate copper or aluminium parts from electric cables' sheath.
We come up with this wire stripper that is fast and user friendly. This wire stripper will cut 90 % of your time in stripping your wire.
The recovered copper or aluminium,can be sold to a smelting plant.Remember to watch the price of copper daily this will maximize your revenue.
This machine Specifications
*It is compact,yet easy of access,practicable and easy to handle,has unique price/performance ratio.
*It has reliable performance,easy to move, place and install.
*This cable stripper is simple to operate without the need for constant adjustment to suit different material sizes.
* Proprietary hardened tool steel blades.
*It is s simple yet efficient machine and requires very little service and maintenance.Only need blade changing and lubrication if necessary.
*It is a totally-enclosed type machine,has side guards cover the pulley and belt system,ensure the operator`s safety.

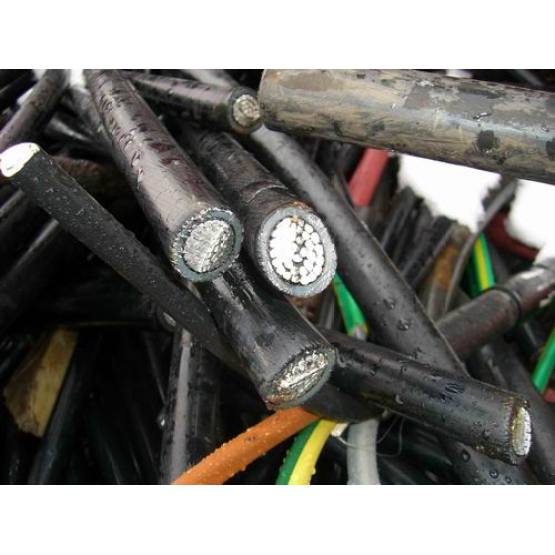

Recovers the Conductor Material from Cable and Wire.
Make sure the cables/wires`diameter are similar with the feeding slots ,
large cables/wires in large feeding slots,small cables/wires in small feeding slots,flat
Cables/wires in flat feeding slots.
