best automatic wire strippers

Unit Price: USD 450.0000 / Piece/Pieces
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 10 Days

Basic Info


Model No.: M-2

Type: Wire Strippers

Certification: CE, CCC, ISO

Customized: Customized

Condition: New

Feature: Insulation

1MM-30MM: 1MM-30MM


Additional Info


Packaging: plywood case

Productivity: 1000

Brand: MRECYCLING

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 1000PCS/MONTH

Certificate: TUV CE


Product Description

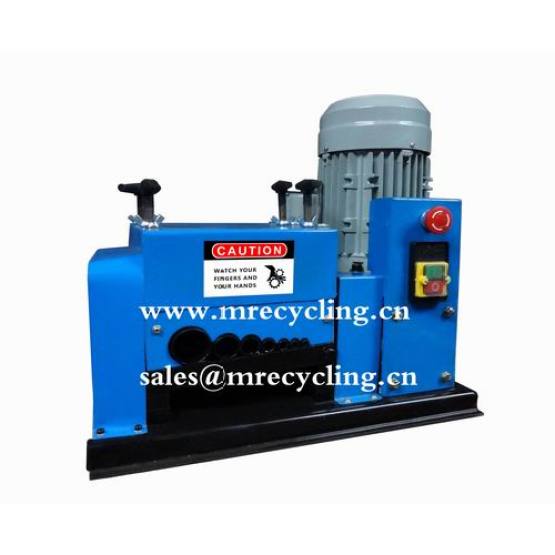

Scrap Electric Copper  Cable Wire Separator
M-2 Bench Type  CE  TUV Approved

An environmentally safe way to remove wire insulation,Designed for Electricians, Demolition Companies, Supply Houses, and Recyclers.

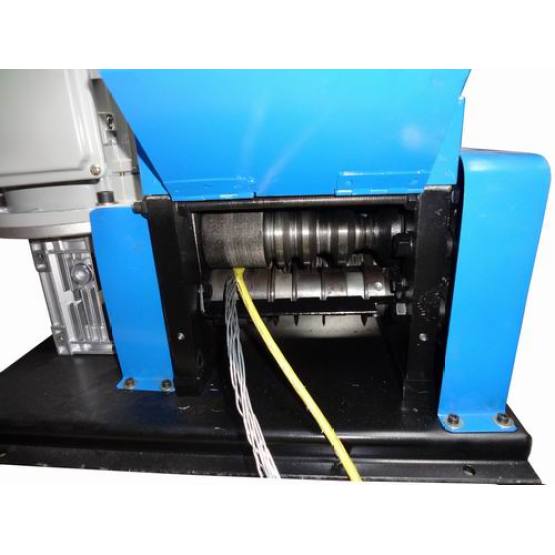

This wire stripper is a bench mounted machine that grips the wire from one side and cuts and removes the insulation from the other simultaneously.Recycle the  copper and aluminum wires.
 copper recycling machine

electric wire stripping machine
Power supply 1.5KW,230V-50HZ
Processing diameter at 1-40mm cable wire
Wire stripping capacity 35 meter/minute
Output 50kgs/hour,depends on wire diameter
Measurement 370*560*520mm
Weight 75kgs
Steel rolls 4sets.
Blades 11 pieces
Slots 7 pieces

wire strppers

*Once the machine is set for one size of wire,you can strip that size continuously,without adjusting your machine.

*Hardened Steel Slitter Blades.

*Heavy Duty Gearbox Drive.

*Industrial on-off switch with separate  Emergency Stop Button.

Instruction:

  1.If there is an anomaly: when the knife peels the side or the cable is not cut tighten the upper tension bolts which faces the problem; press the setting screw tightly, adjust the knifepoint in the right place, try peeling the cable again until you reach the ideal result, then tighten the screw bolt.

2. If line core in the cable is deeply cut, please adjust the loosen the upper pressure setting screw, if this is not possible (as you`re already in the largest channel and the knifes are still cutting deeply into the metal) adjust the lower mandrel setting screw (which will raise the upper cutters/rollers), put the knife axes up tightly to the desired place (make sure that both the left and right sides rise or fall at the same time in order to keep the knife and main axes level).

cable processing plant
