automatic cable stripping machine
Model No.: M-3
Type: Metal Recycling Machine
Material Processed: Metal
Knife Type: Piece Knife Crusher
Certification: ISO, CE
Packaging: in case
Place of Origin: China
Supply Ability: 1000
Certificate: TUV CE
wire and cable machinery
M-3 Industrial Type

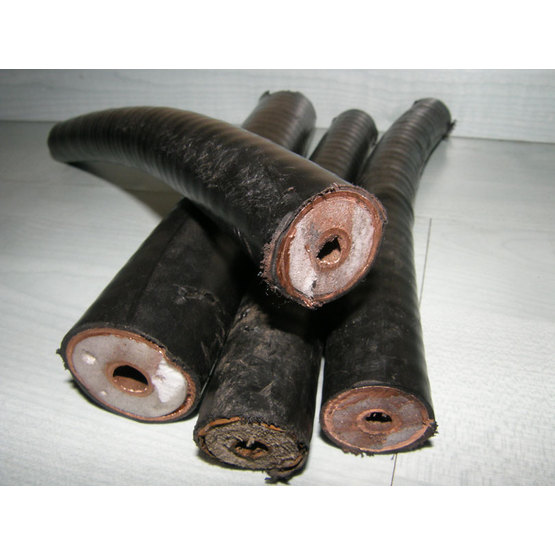

Designed for Heavily armored cable,massive cable,energy cable ACSR(aluminum with steel core),submarine cable.
Processing diameter at 2-70mm cable wire.
Heavy Duty enlarge to 160mm.
Cutting speed 50 meter per minute.
Output 100 KGS Copper per hour

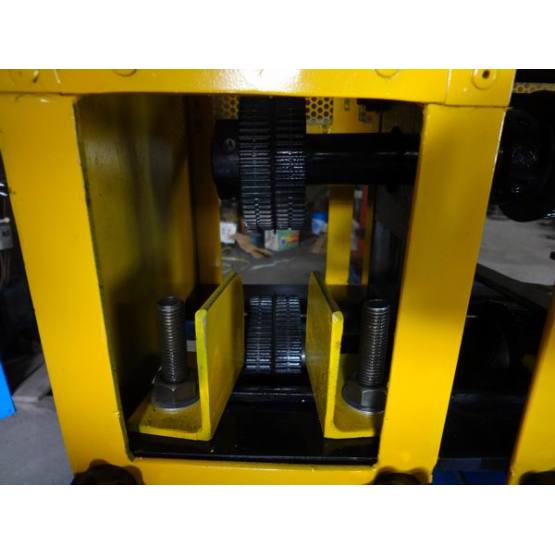

Steel rolls 2sets
Blades 4 pieces
Adjustment is simple, and there is no need for constant settings changes to suit different material sizes.
Recycle the copper, aluminum,and steel from wire.you also get concentrated rubber in tiny pellet form which you can sell directly to rubber and plastic recycling firm.
It has four-grade gearbox ,when adjusting first, push one handle to the neutral position and then move the other one for adjusting .
[N":neutral(zero speed),"H":high speed,"L":low speed
[1"+"L"=Minimum speed,for wire diameter over 70mm.
"1"+"H" = medium speed,for wire diameter over 50mm.
[2"+"L"= higher speed ,for wire diameter over 20mm.
[2"+"H"=highest speed,for wire diameter over 1mm.
Attention:when changing speed,please turn off the machine firstly,
Then turn both handles to"N" position,setting the speed you want to get.
