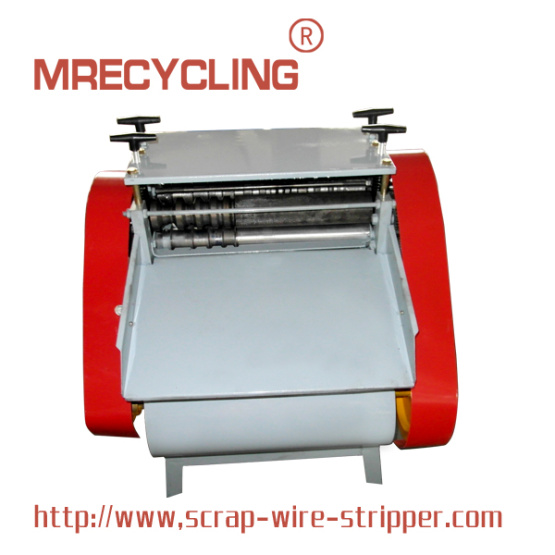

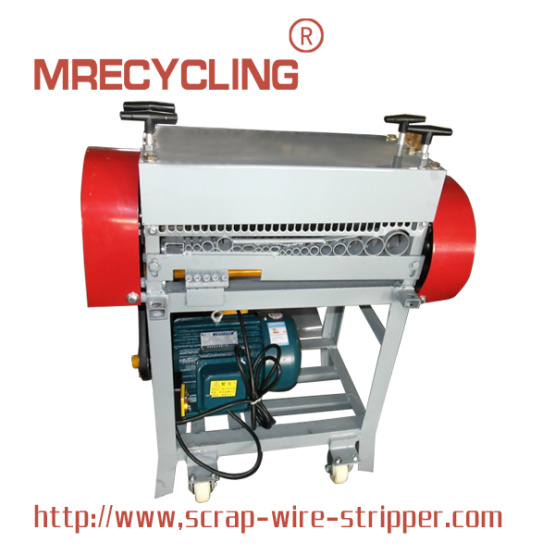

automatic cable stripper
Model No.: M-1
Type: Metal Recycling Machine
Material Processed: Metal
Knife Type: Flat Knife Crusher
Certification: ISO, CE
Place of Origin: China
Supply Ability: 10000
Certificate: TUV CE
cable stripping tool M-1 Advanced White Type
Power supply 230V-50HZ,2.2KW
Daily Output 400-1000KG
Processing diameter at 1-45mm cable wire
Wire stripping capacity 35 meter/minute
Steel rolls 4sets.
Blades:17 pieces+5 pieces high speed steel
Slots 21 pieces
copper cables,AL wires,
double PVC-covered copper wire,
twin Socket line,
dual core flat line,
Single core wire,
XL jacketed wire,etc.
Scrap Electrical Copper Cable Wire Stripping Machine.
Recovers the Conductor Material from Cable and Wire.
1.Start up the machine,make sure the machine well running,and there is no people in the machine`s output side.
2.Please infeed wire/cable according to the inlets`diameter,infeed wire/cable on by one.
To avoid damaging blades,please cut down terminal of the wire/cable before feeding.
3. If the wire is not cut after stripping, you need to tighten the handles to lower the blade.
4. If the copper inside is cut after stripping, you need to release the handles to raise the blade.
